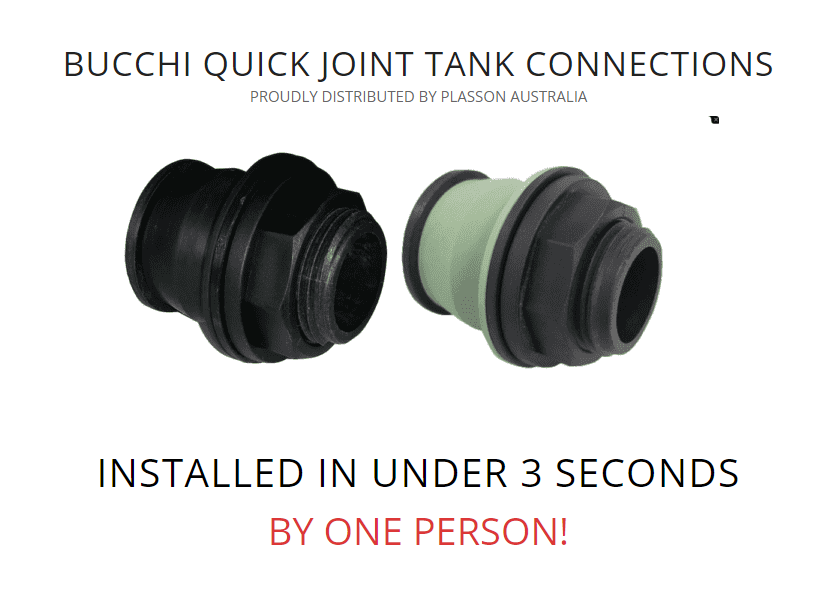

PLASSON 1" BUCCHI QUICK JOINT W/FOOD GRADE GASKET

BUCCHI ADAPTORS FIT FROM THE OUTSIDE SO YOU DON’T NEED ACCESS TO BOTH SIDES OF THE TANK WALL

Use on tanks with curved or uneven walls, for water, fuel and even aggressive liquids!

This adaptor is a quick push-in polypropylene (PP) coupling for tanks and containers made PE and IBC containers.

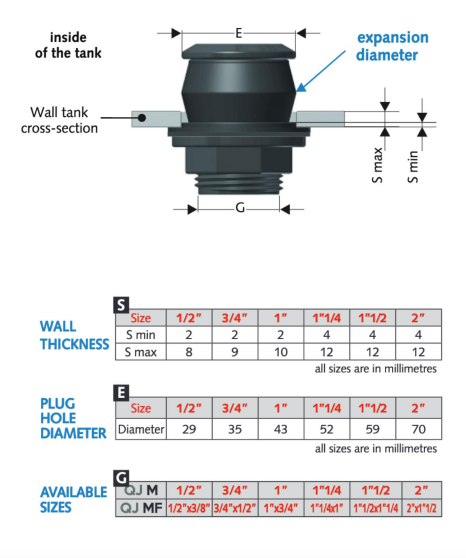

FITS PLASTIC OR STEEL 2MM TO 12MM

They are resistant to temperatures, stress, vibrations, corrosion and weather conditions and guarantee a hydraulic seal up to 4 bar!

Simple

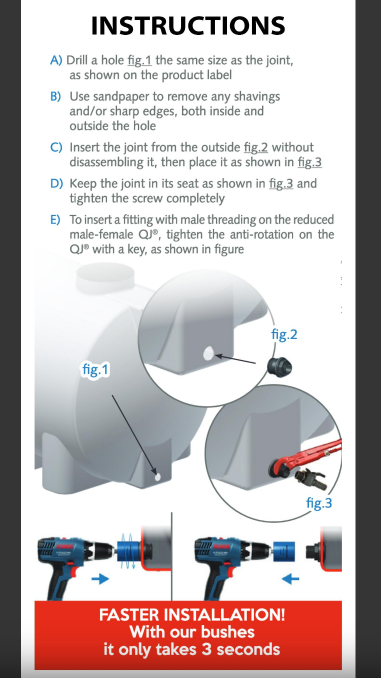

A single person push-fit install in seconds from outside the tank.

Reliable
Techno-polymers and innovative gaskets designed for shaped tanks and tanks storing oil and diesel.

Flexible
Gaskets adapt to the tank surface to guarantee water tightness on irregular walls with variations in thickness.

Engineered for tough and demanding use for agricultural, machinery and automotive liquids as well as industrial and waste water treatment tanks, with EPDM gaskets for water, NBR for oils and gasoils and VITON for petrol and acid, BUCCHI simply makes tank connections easier:

Simple: connect straight to the tank wall with no welding, sealants or locknuts

Reliable: patented variable diameter guarantees hydraulic sealing up to 4 bar

Smart: buffer to reduce friction and tightening through the threading allows gasket to adjust to the wall

Strong: working pressure of 4 Bar at 20’C with 8Nm tighten torques

Tough: mechanical resistance, shock absorption, chemical resistance, electriclly insulated and non toxic
